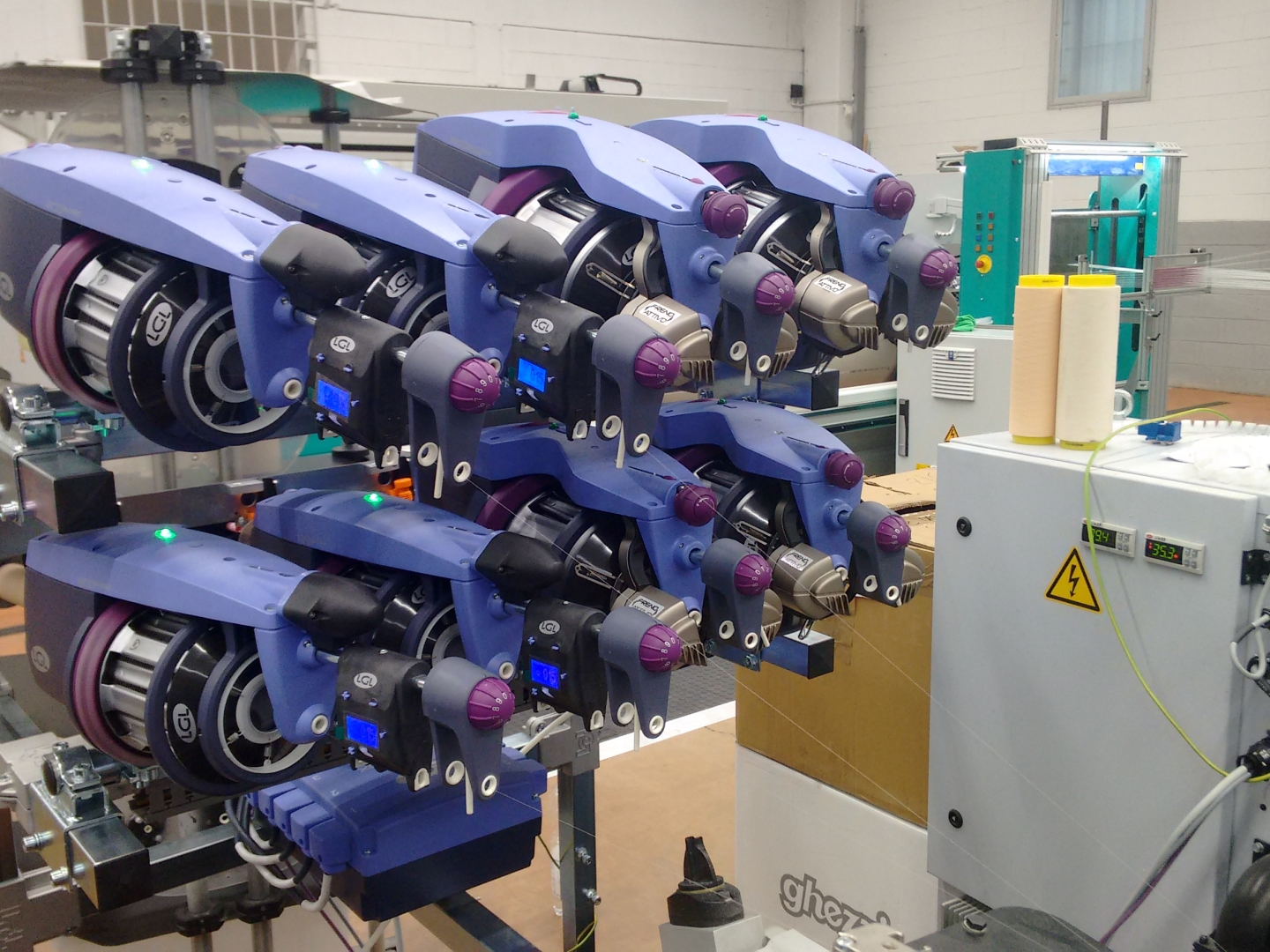

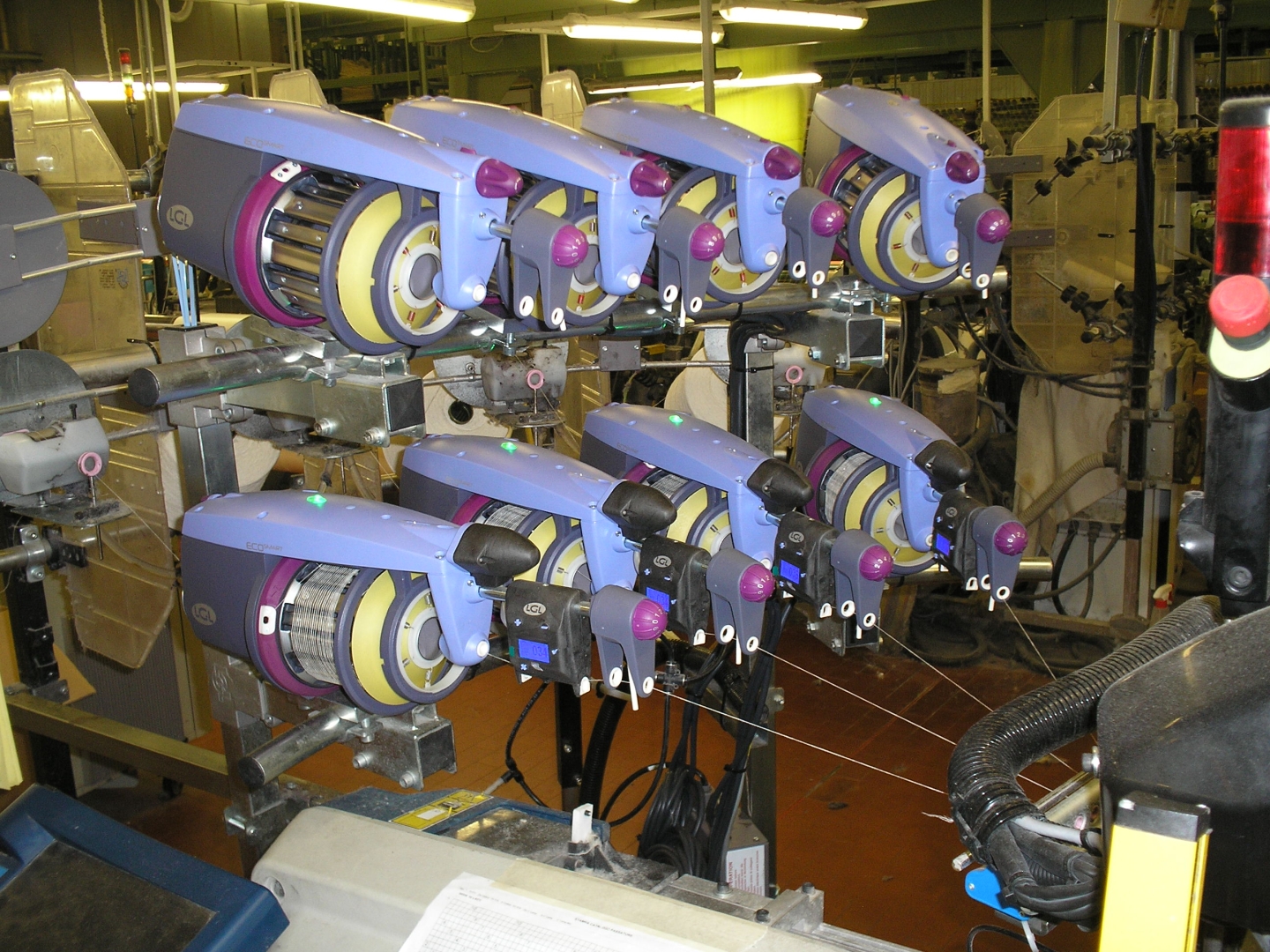

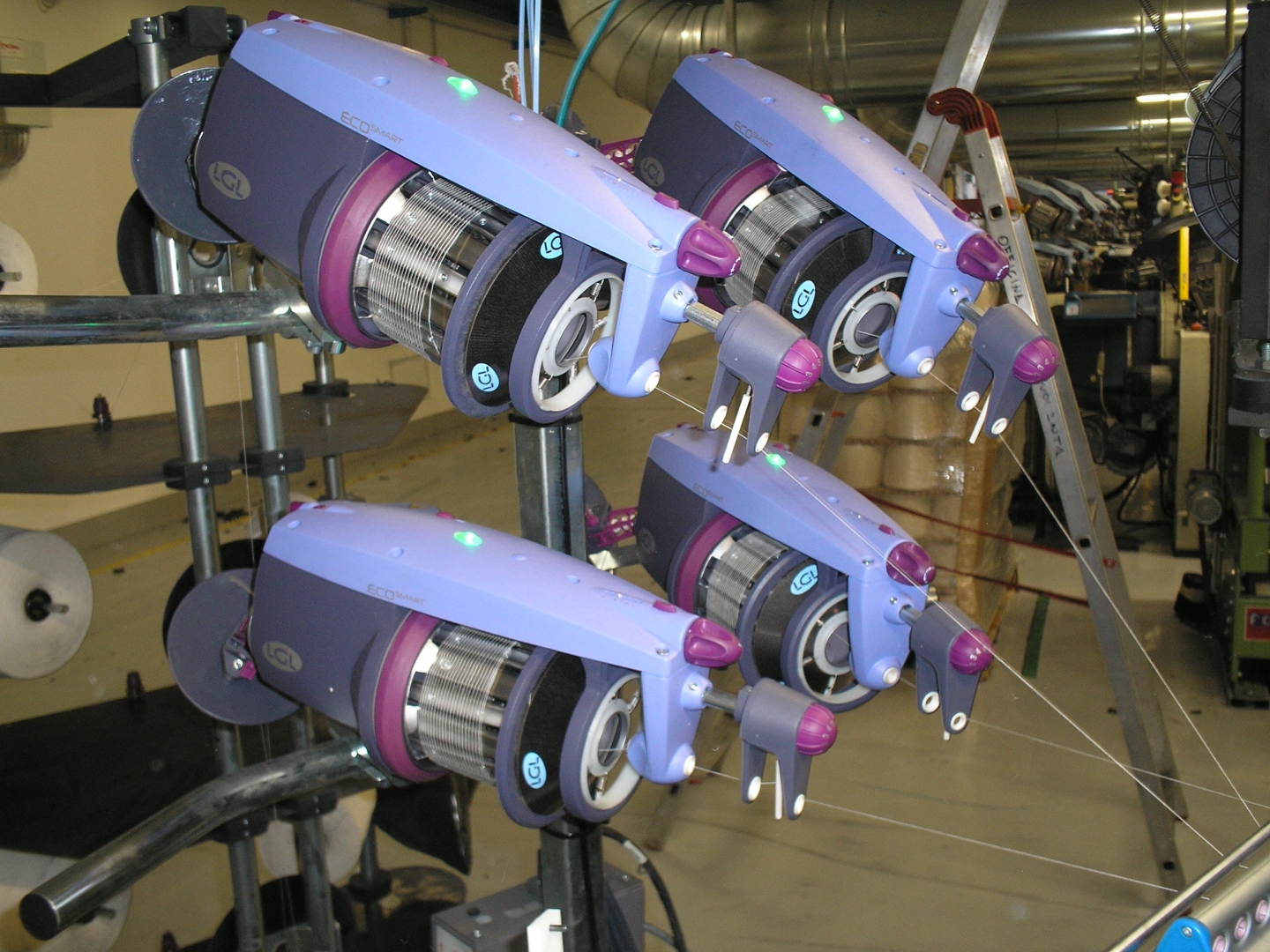

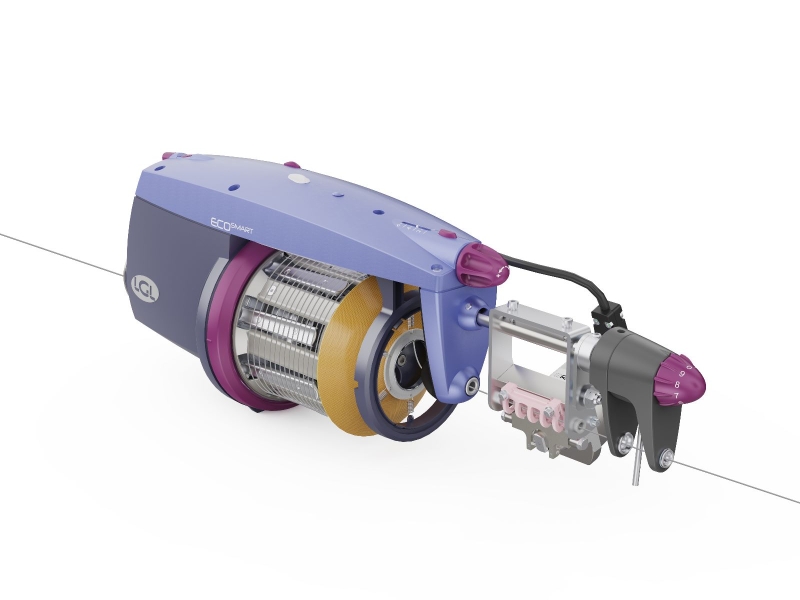

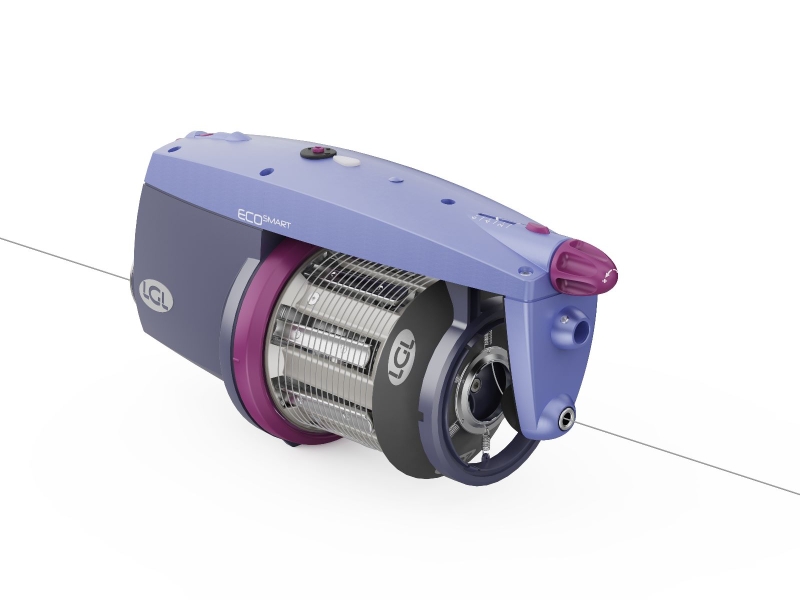

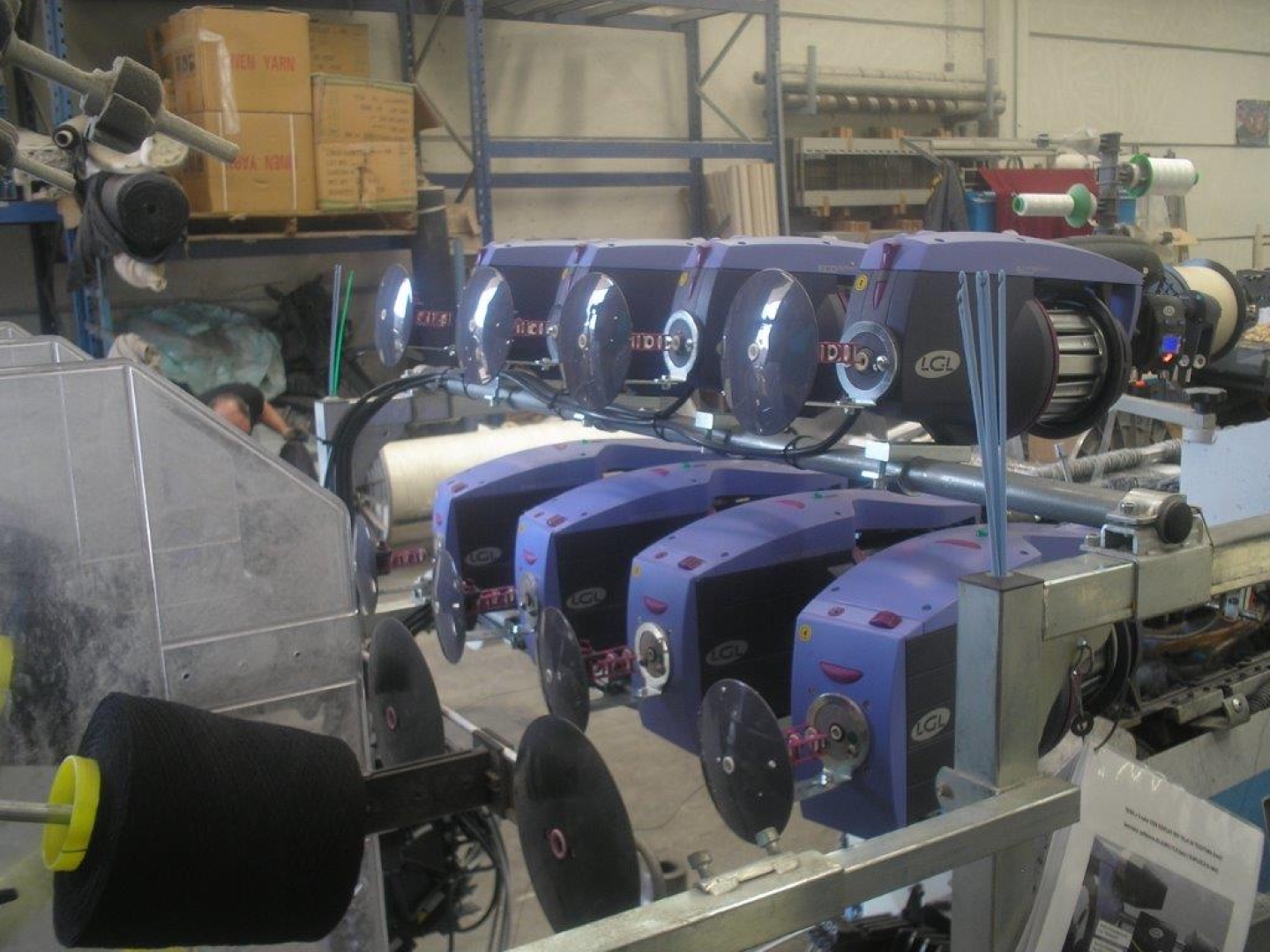

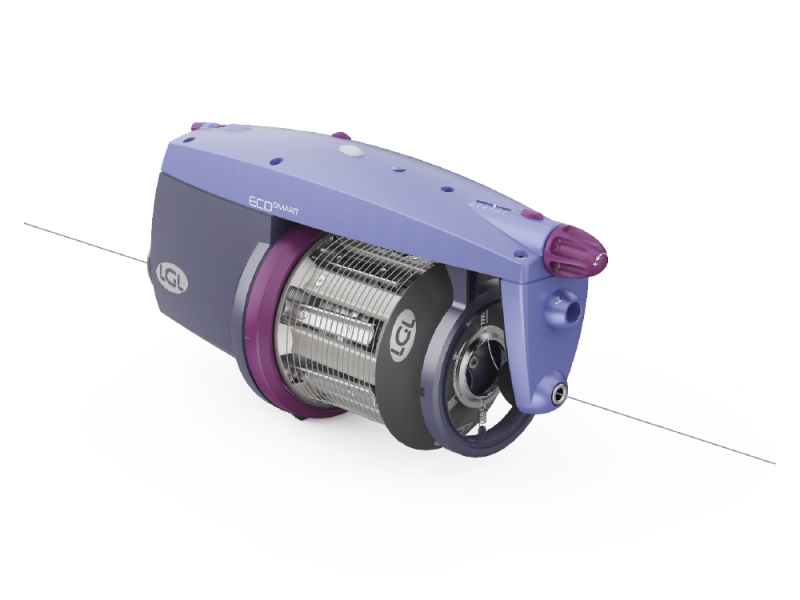

Weft accumulators with separate adjustable coils that can be used on all gripper and projectile weaving machines.
Features
Automatic speed control
Weft reserve control 100% dust, light and smear-proof
Reversible Rotation Direction (S/Z)
Compatible with either tradional or Canbus looms
Automatic flywheel positioning upon yarn breakage
Pattern preview mode
Automatic loom stop
Exclusion of broken wefts
Technical data
Range of yarns
5 to 1400 Den
Spool body diameter
110 mm
Speed
up to 1400 m/min
Sensors
Optical or mechanical
Pneumatic threading
Optional
Braking systems
Manual, Brake, Tens, Srake, Tens-Brake
Coil separation
0 to 2,5 mm adjustable
Motor
Brushless
Power consumption
20 W avarage - 130 W Max.
Acustic pressure
< 70 dBA at max speed
Power supply
140/300 VDC
Accessories

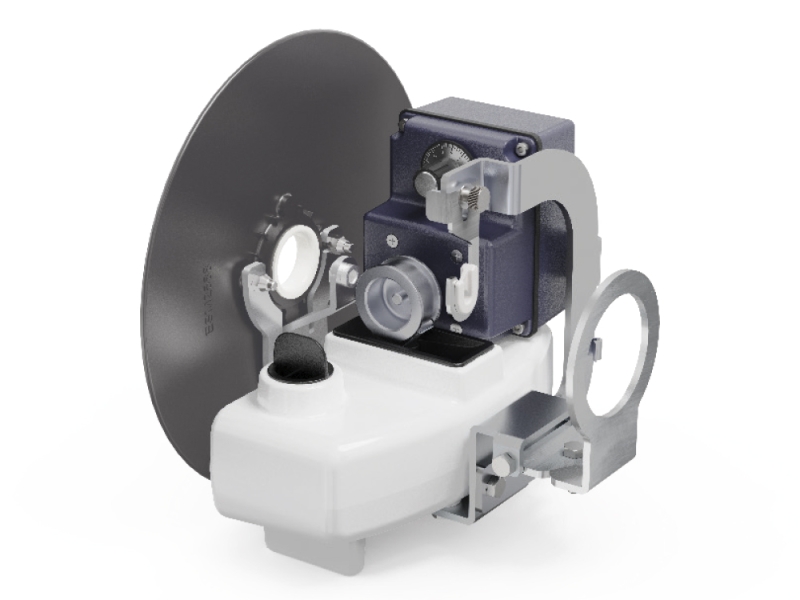

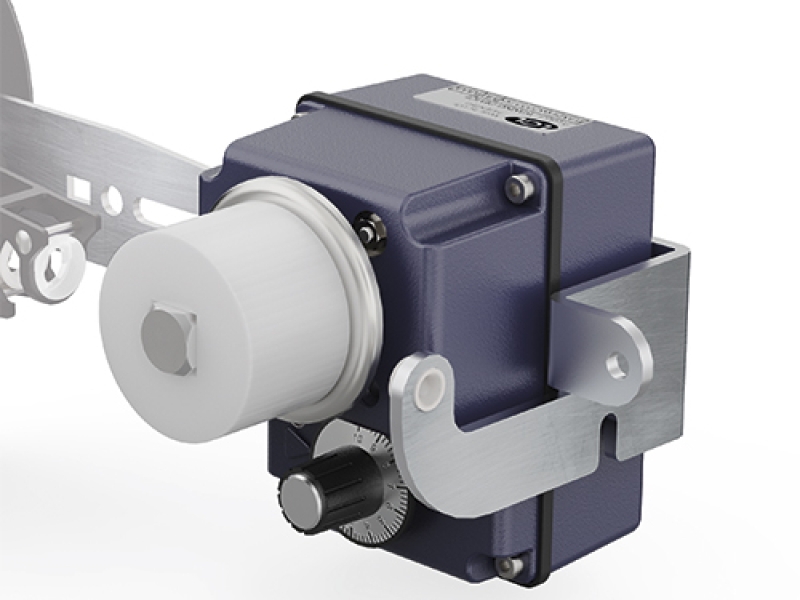

Motorized oiling unit
Motorized waxing unit

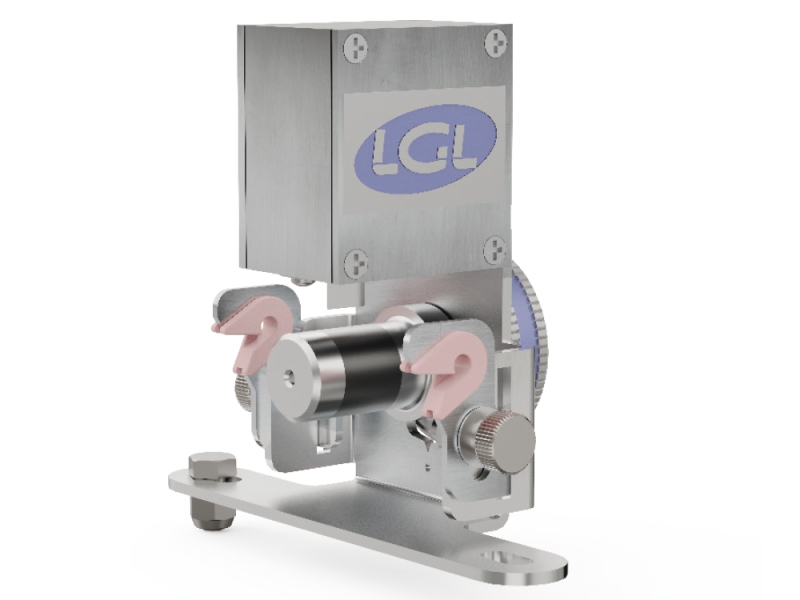

Knot detector
Electronic brakes
B-RAKE
All functions granted by ATTIVO. The presence of a rake allows management of higher tensions range.

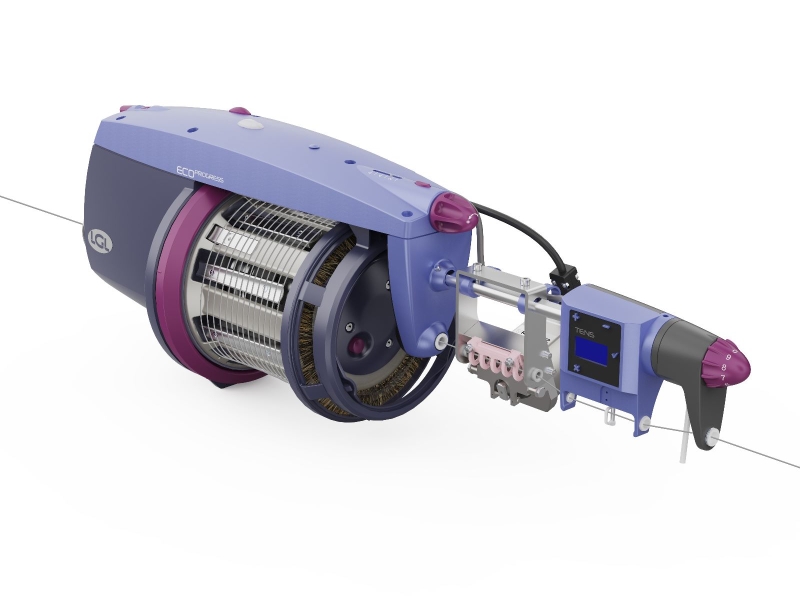

TENS
Keeps the avarage tension consistent avoid fabric width changes. Reduce waste by keeping selvedge constant. Lockable display avoids undesired parameters change. Save tension settings and upload them in future production runs of the same article.
S-RAKE
All functions granted by TENS. The presence of a rake allows managament of higher tension range.
TENS B-RAKE
All function granted by B-RAKE. Manage average tension on a selected braking zone. Recommended solution for filters, anti-hail nets, screens, monofilament.
